Top and bottom rail in anthracite aluminum design for 84 x 84 pole Royal HORTUS
211-653
Nice finish on the profile fence
Rec. price incl. VAT DKK
159,00 kr.
OutOfStock
Description

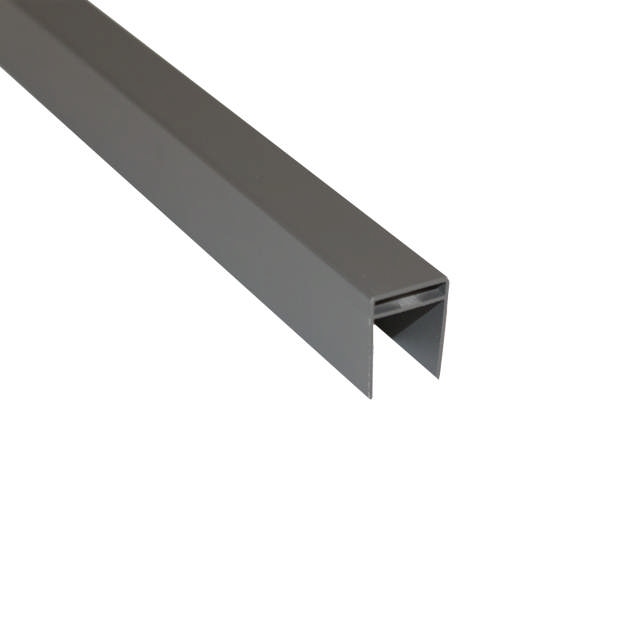

Top/bottom rail in anthracite aluminum including fittings – from HORTUS
Dimensions top rail length: 176,9 cm Dimensions bottom rail length: 181,4 cm Material: aluminum
Color: anthracite
1 x set of top/bottom rail is to be used for each assembly. Each top/bottom rail set contains 2 x L-shaped bracket with a screw, which is to be fastened to each fence post (not included) along with the included self-tapping screw. Please make sure that the post is in plumb in the dug hole 80-100 cm deep. Fill in the hole with dry post concrete. Use the bottom rail to measure the distance between the posts - both at the top and at the bottom. Please leave approximately 3 mm of space from the rail to the middle of the post so that the pickets are able to expand. Place the bottom rail on top of the L-shaped bracket. Now, the profiles can be placed between the pickets. When the desired height is obtained, please place the top rails on top of the top board in order to create a nice completion to the assembly. Finally, please place the post cap.
Dimensions top rail length: 176,9 cm Dimensions bottom rail length: 181,4 cm Material: aluminum
Color: anthracite
1 x set of top/bottom rail is to be used for each assembly. Each top/bottom rail set contains 2 x L-shaped bracket with a screw, which is to be fastened to each fence post (not included) along with the included self-tapping screw. Please make sure that the post is in plumb in the dug hole 80-100 cm deep. Fill in the hole with dry post concrete. Use the bottom rail to measure the distance between the posts - both at the top and at the bottom. Please leave approximately 3 mm of space from the rail to the middle of the post so that the pickets are able to expand. Place the bottom rail on top of the L-shaped bracket. Now, the profiles can be placed between the pickets. When the desired height is obtained, please place the top rails on top of the top board in order to create a nice completion to the assembly. Finally, please place the post cap.
Specifications
- Brand name
- HORTUS
- Amount per box
- 1 pcs
- Amount pr. pallet
- 400 pcs
- Height
- 3.9 cm
- Length
- 181.4 cm
- Width
- 2.3 cm
- Color
- Anthracite
- Material
- Aluminium
- DB number
- 2272566
- EAN
- 5705858719016
Product and Shipping dimensions
- Product number
- 211-653
- Net weight
- 1.1 kg
- Gross weight
- 1.2 kg
- Volume
- 0.000925 m3
- Gross depth
- 0.05 m
- Gross height
- 0.01 m
- Gross width
- 1.85 m
Downloads
| Name | Download | File type | |
|---|---|---|---|
|
211-654_655_656_690_657_658_659_660_691_661_662_663_664_653_665_666_667_668_694_669_manual ROYAL_2023_ny.pdf | 767 KB |
